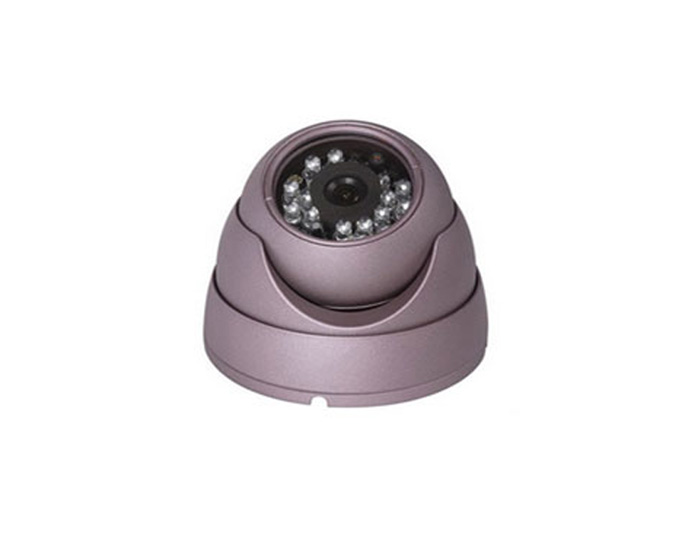

TYD-715 Purple Metal Conch Dome Camera

24 infrared lights, effective distance of 10 meters
Aluminum alloy shell, not easy to age, resistant to high temperature of 75 degrees
Standard 2.8mm lens, optional other specifications lens
High definition, using 1/3 CMOS 800TVL
Digital fill light, infrared night vision, good effect when the light is insufficient
The internal circuit is optimized many times, low power consumption, stable and reliable
Standard 4-pin aviation connector, can also be customized according to customer needs

support hotline：
0755-29470519

Product Details

Structure size

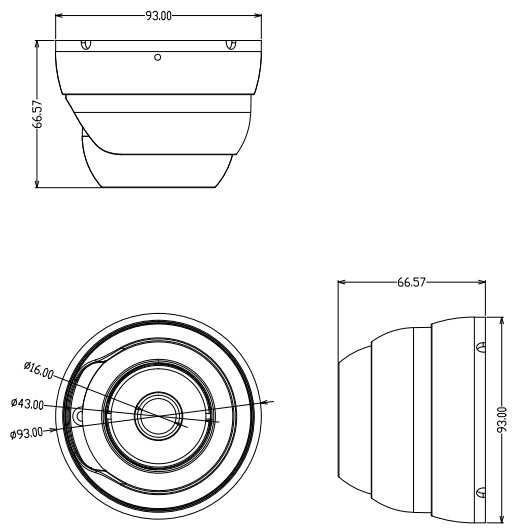

The structure size is shown in the figure below, the unit is millimeters, the error is ±0.5mm, the outer diameter of the product base is φ93.00mm, and the total height is 66.57mm (as shown in the figure below).

Product parameter

1	Product number	TYD-715
2	shell material	Aluminum shell
3	Exterior color	black
4	Imaging device	CMOS
5	Signal System	PAL/NTSC
6	Effective Pixels	976(H)*582(V)
7	Synchronization system	Internal synchronization
8	Horizontal resolution	800TV lines
9	Minimum illumination	0 LUX{infrared start}
10	Video output	1.0vp-p, 75Ω
11	Gamma coefficient	0.45
12	Signal-to-noise ratio	Greater than 48dB
13	White balance	Auto
14	Electronic shutter	1/60-1/100000 (seconds)
15	BLC	Auto
16	Current	225mA±10% (infrared start), 45mA±10% (infrared not start)
17	Voltage	DC 12V±10%
18	Operating temperature	－20°C~70°C
19	Relative ambient temperature	Humidity is between 30% and 85%
20	Camera angle	2.8mm
21	Use environment	outdoor
22	Protection level	IP65

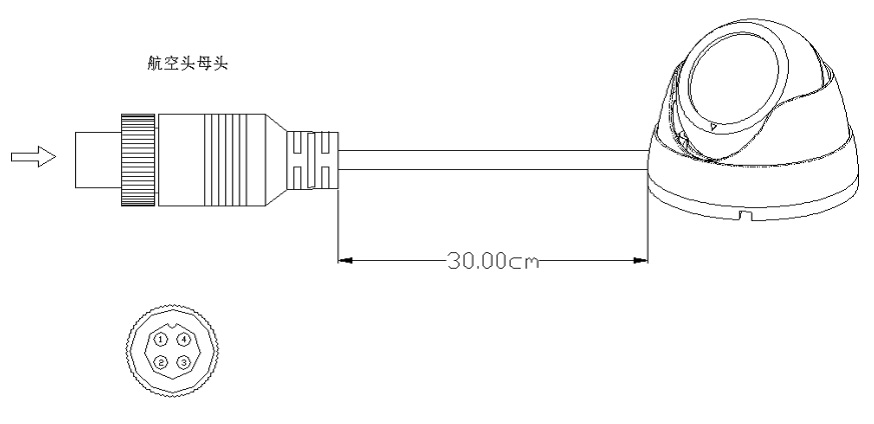

23	Connection connector	Standard 4-core aviation head (customizable)
24	microphones	Can take recording
25	Camera weight	330g
